LED film screen Chinese supplier

Kesytech LED film screen uses flexible transparent material, which can be rolled and cut. The brand’s lamp beads are embedded moisture-proof and waterproof. There are many names on the market, such as crystal film screens, LED film screens for glass, etc.

The LED film screen has high transparency of 90%-95%, showing rich colors, high brightness, high contrast, and fine picture quality.

The full range of LED film screen designs does not require a steel frame structure or programming, comes with its adhesive backing, and is very convenient to install using a fool-proof method without needing a professional team.

Kesytech LED crystal film screen has multiple specifications and models from P6 to P20 to meet the needs of various spaces.

LED film screen features

  • kesy brightness icon

    High brightness, high transparency

    • The brightness is as high as 3000-6000 nits, and the brightness is automatically adjusted during the day and night.
    • Hidden wiring, transparency up to 90-95%.
  • kesy size icon

    Flexible size without restrictions

    • LED film screen is a flexible panel that can be bent and cut with no restrictions on size and shape.
  • kesy easy to install

    Lightweight and easy to install

    • Lightweight design, no steel frame required, comes with self-adhesive backing, can be directly pasted and installed by tearing off the protective film, which is extremely simple.
  • kesy application scenarios icon

    Smart Apps

    • A dedicated application that supports customized playback content (images, text displays, animations and videos) on computers, tablets, mobile phones, Bluetooth, and Wi-Fi.

Various application fields of LED crystal film screen

LED crystal film screens are favored by various industries in the market, such as commercial space, shopping malls, real estate, and auto 4S stores, for their advantages of thin and light design, flexible panel, bendable and cuttable, no steel frame structure, high transparency, unlimited size and shape, etc. Do you have similar projects? Contact us now to get a free quote.

  • Commercial Space

    Commercial Space

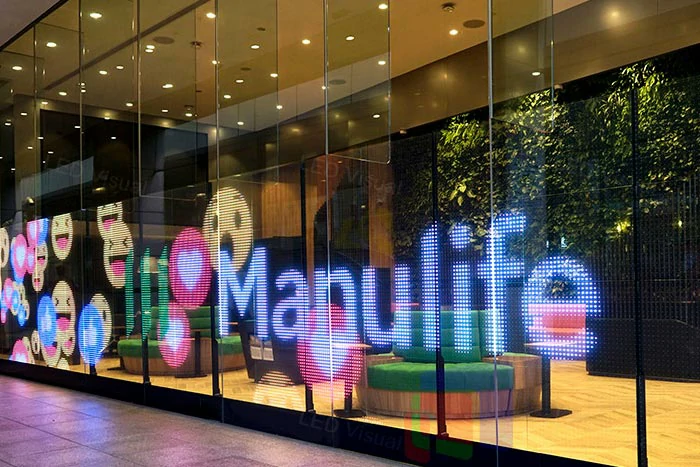

    Pasting LED film screens for glass on the glass curtain wall of commercial space can turn ordinary glass into high-end digital glass. LED film screen for glass not only does not block the indoor light of commercial space but also enhances the grade and fashion sense of the space.

  • shopping mall

    shopping mall

    The elevator guardrail with LED crystal film screen in the shopping mall is not only a beautiful landscape, but also a focus to attract customers. If you also arrange a Kesytech flexible transparent film screen in your store window, it will be a very good choice.

  • Real Estate Center

    Real Estate Center

    The LED crystal film screen is pasted on the glass curtain wall of the sales center, which can not only display the real estate information and real estate effects but also does not block the indoor light of the sales center. At the same time, it creates a modern high-tech sales center and enhances the corporate brand image of the developer.

Kesytech Innovative Display LED Crystal Film Screen Supplier

Kesytech has more than 10 years of experience in the display industry. We will provide high-quality, low-priced products from the source as soon as possible for the cutting-edge technology of the display market. Kesytech’s latest technology products are generally equipped with relevant certifications. If you have special needs, you can communicate directly.

No matter the size of your project, our Kesytech project manager will serve you wholeheartedly. If you need the hot-selling LED crystal film screen in the market, you can contact us at any time to get a free quotation.

  • Take every batch of goods seriously

    Regardless of the size of the project, Kesytech will strictly control quality inspection, and the project manager will personally conduct offline inspections in the workshop before packaging the products.

    Kesytech LED film screens are packed not only in cartons but also in aviation boxes to ensure safe transportation and smooth delivery of the products.

  • Complete material reserves to cope with large projects at any time

    Kesytech has a stable material supplier, sufficient reserves of production materials, and more than 10 production lines operating simultaneously, ready to respond to your large projects at any time. You don’t have to worry about production and delivery issues. Communicate the delivery time at the beginning of the cooperation to avoid delaying the project’s progress.

    material storage room scaled~1

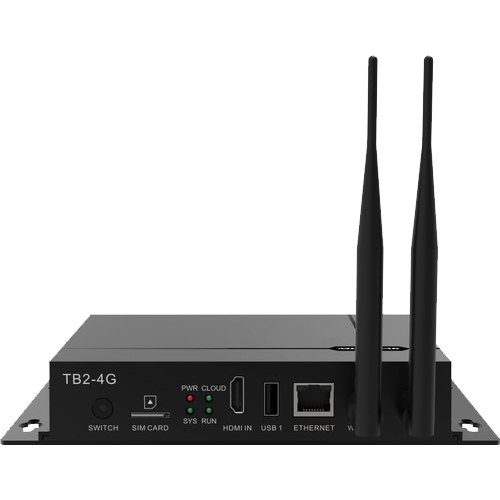

  • novastar player

    Novastar Multimedia Player Equipped

    Novastar media players of different specifications will be provided according to the actual situation when the device is shipped. You can set and control the information content in real time through the Novastar controller.

    The Novastar controller can be used to upload content (supported formats: images, text, animations, and videos) via mobile phones, computers, tablets, Bluetooth, or WiFi.

    Through the cloud, you can also remotely control the information content and screen status monitoring on the transparent screen.If your project is large, the Novastar controller will be better.

LED crystal film screen detailed installation tutorial

Installation steps :

  1. Take out the flexible transparent LED film display.
  2. Cleaning the window glass surface.
  3. Spray water on the glass surface.
  4. Tear off the adhesive backing of the flexible transparent LED film display and align it flat.
  5. Scraping plate for LED crystal film screen.

See video operation details.

LED crystal film screen information card

transparent led film hard screen
led film list1
adhesive transparent led screen
p6.25 LED film screen
transparent led film hard screen 6
led display for shop windows
Module P6.25 P8 P10 P15
Module Size (mm) 400*1000 400*1000 400*1000 390*990
LED Light REE 1313 2121 REE 1313 2121 REE 1313 2121 REE2121
Brightness cd/㎡ 2000 4000 2000 4000 2000 4000 2000/4000
Pixel Composition R1G1B1 R1G1B1 R1G1B1 R1G1B1
Pixel Spacing (mm) 6.25*6.25 8*8 10*10 15*15
Module Pixel 160*64=10240 125*50=6250 100*40=4000 66*26=1716
Pixel/㎡ 25600 15625 10000 4356
Transparency 90% 92% 94% 94%
Angle of View° 160 160 160 160
Input Voltage AC100-240V50 / 60Hz AC100-240V50 / 60Hz AC100-240V50 / 60Hz AC100-240V50 / 60Hz
Peak Power 600w /㎡ 600w /㎡ 600w /㎡ 600w /㎡
Average Power 200w /㎡ 200w /㎡ 200w /㎡ 200w /㎡
Work Environment Temperature-20~55℃
Humidity10-90%		 Temperature-20~55℃
Humidity10-90%		 Temperature-20~55℃
Humidity10-90%		 Temperature-20~55℃
Humidity10-90%
Weight 1.3kg 1.3kg 1.3kg 1.3kg
Thickness 2.0mm 2.0mm 2.0mm 2.0mm
Drive Mode Static State Static State Static State Static State
Control System Nova/Colorlight Nova/Colorlight Nova/Colorlight Nova/Colorlight
Typical Value of Life 100000H 100000H 100000H 100000H
Grayscale Level 16bit 16bit 16bit 16bit
Refresh Rate 3840 Hz 3840 Hz 3840 Hz 3840 Hz

Customers are all asking- FAQ

Customers often inquire about common questions, and you may find answers to your product-related queries here as well. If you still have any uncertainties, please feel free to contact our customer service directly.

Answer: Currently available sizes include: P5 (1000x320mm), P6.25 (1000x400mm), P8 (1000x400mm), P10 (1000x400mm), P15 (390x990mm), and P20 (1000x400mm). Custom sizes can be produced if the existing module sizes do not meet project requirements. Whether a custom size can be manufactured will need to be discussed and agreed upon by our R&D and production departments.

Answer: The transparency percentage is 90%, and the viewing angle is 160°.

Answer: The brightness levels are 2000 and 4000 (with an additional charge of 1000 yuan per square meter). Brightness can be adjusted using software according to different lighting conditions.

Answer: No proprietary software is required to manage the screen.

Answer: Yes, multiple screens can be synchronized for a seamless, larger display.

Answer: The flexible LED film cannot be cut freely, as cutting would damage the circuit board and affect the product's performance and stability. Custom sizes can be made according to your project requirements.

Answer: The average power consumption of the flexible LED film screen is 200w/m², and the peak power consumption is 600w/m².

Answer: We recommend using NovaStar or Colorlight as the control software.

Answer: Uploading can be done remotely via a mobile app, provided that the sending box is connected to the internet or has a 4G module.

Answer: The screen supports input sources such as HDMI, USB, Wi-Fi, and cloud-based control systems. The flexible LED film screen can play various file formats, including text, images, and videos.

Answer: Yes, the flexible LED film screen is not waterproof and can only be used indoors.

Answer: LED crystal film screens cannot be pasted on the outside of building windows

Answer: The flexible LED film screen can be moved back to other surfaces, but be careful when tearing the flexible LED film screen off the glass.

Answer: Our flexible LED film screen has CE and RoHS certificates

Answer: We provide 1-year warranty

Answer: The installation is simple, you just need to stick the screen on the glass. No professional installer is needed, just follow the installation video.

Answer: It gets stronger over time, and the screen can be repositioned, but you need to be careful when peeling it off.

Answer: Use alcohol wipes to gently wipe the screen surface



    LED film screen market case display, the on-site effect is more shocking

    LED flexible transparent film display

    Working effect of LED flexible transparent film display of American technology company

    Flexible led film transparent screen.

    Flexible led film transparentscreen, turn your glass into a display screen in one second.

    Customized LED crystal film screen creates a fashionable and creative space

    100+ Customers LED Crystal Film Screen Suppliers Worldwide, Contact Us Now to Get a Free Project Quote！

    Get A Free Quote

    LED crystal film screen catalog

    LED film screens are available in a variety of specifications. The following are representative specifications that are widely used in the market. If you have other specifications, please contact us directly. You are welcome to consult and get a free quotation at any time.
