LED Poster Display Manufacturer and Supplier

You can use an LED poster display as a digital advertising unit that presents images, text, and video through LED modules. You may also see it described as an LED poster screen or digital LED poster.

You can select a standing, foldable, or portable LED poster display according to the display location and required mobility, with Wi-Fi, USB, HDMI, or remote content management configured when the selected model supports it.

You can compare SMD and GOB panel construction. Kesytech can help you verify the operating environment, pixel pitch, structure, and control configuration without treating optional functions as standard on every model.

Types of LED poster

LED Poster Screen Features

  • kesy plug and play

    Multiple Inputs and Splicing

    USB and HDMI content input and multi-unit splicing depend on the selected controller and model.

  • kesy front and back maintenance icon

    Flexible Content Management

    Compatible control configurations can provide Wi-Fi or cloud-based content publishing and device management.

  • kesy untitled design 11

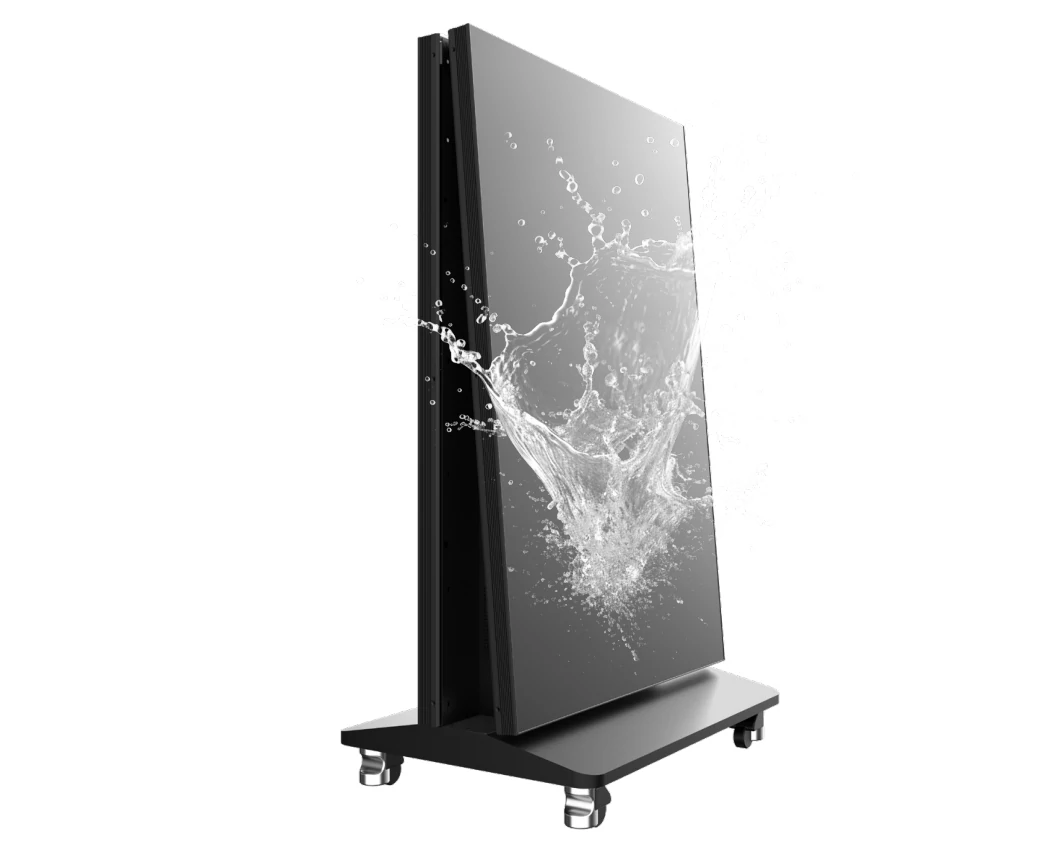

    GOB Surface Protection

    GOB treatment can improve display-surface resistance to moisture, dust, and everyday impact.

  • kesy airbox packing

    Simplified Movement and Transport

    A foldable structure and casters reduce storage volume and simplify on-site movement.

LED Poster Display Applications

You can use an LED poster display in stores, exhibitions, reception areas, schools, and corporate spaces for advertising, events, wayfinding, or announcements, with the structure and pixel pitch selected for viewing distance and mobility.

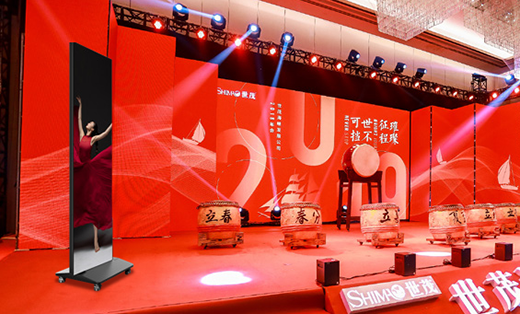

  • Stage

    Stage

    When the event site needs to display content separately, you can directly use the LED poster screen, such as: on-site marketing advertising product introduction, event site lucky draw activities, event theme promotion, etc.

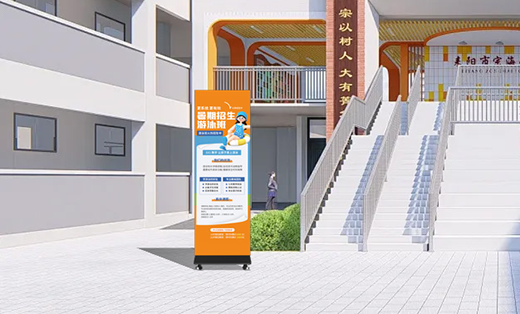

  • School

    School

    It can be used for distributing information such as school enrollment information, event notifications, educational publicity, expert lectures, etc. It has universal wheels and can be placed anywhere, making it very convenient to convey information.

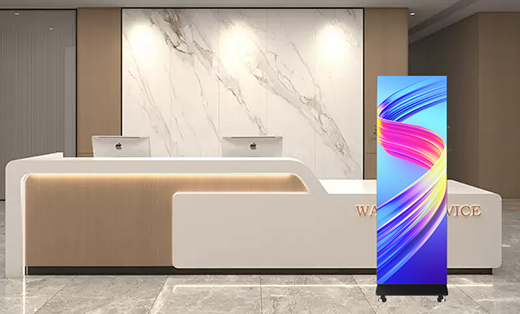

  • Reception

    Reception

    The company’s front desk uses LED poster screens to display information about the company’s new product promotions, company profile, company on-site recruitment and other information. The content can be set to switch to different information at any time.

Choosing kesytech LED poster screen is equivalent to choosing convenience and comfort.

Kesytech is the source supplier of LED posters and has inherent advantages in both product quality and price of LED poster screens.
The module lamp beads of our LED poster screen are all from well-known suppliers in the industry. The screen has high brightness, delicate and clear picture quality, and amazing color reproduction

Each batch of products has strict professional quality control. All products are shipped in air boxes to ensure the safety of transportation and can be used after being plugged in.

  • Product quality and cost control

    In addition to professional quality inspectors, Kesytech also has project managers who personally spot-check product quality in the workshop to ensure that the goods you receive are of worry-free quality.

    Kesytech LED poster screen is based on saving costs for customers. It is easy to install by one person and has no installation fee. It comes with universal wheels for easy transportation and movement, which truly means one-time consumption with no other fees for life.

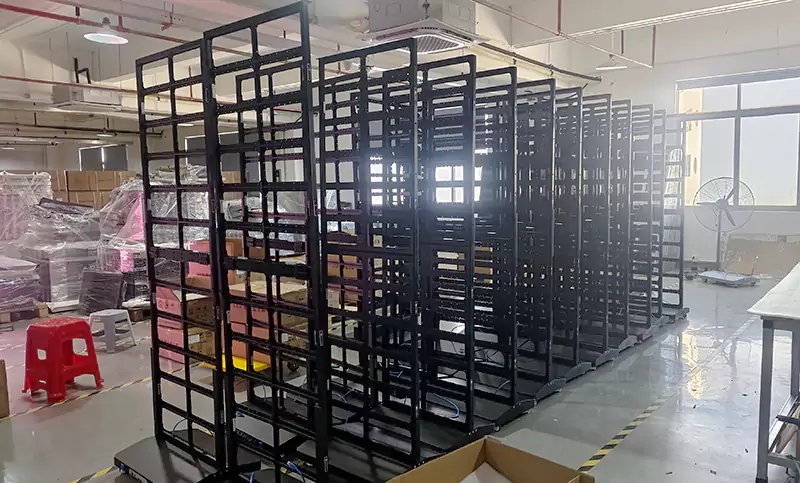

  • Complete material reserves to avoid supply chain shortages

    Kesytech has a complete stock of materials for LED poster production, such as metal cabinets, poster screen modules, lamp beads, power supplies, etc. We are ready to supply large quantities of goods at any time to ensure that each batch is delivered on time.

    Conventional LED posters basically have a certain amount of inventory. You can just hand over the project to us and wait for it to arrive.

    material storage room scaled~1

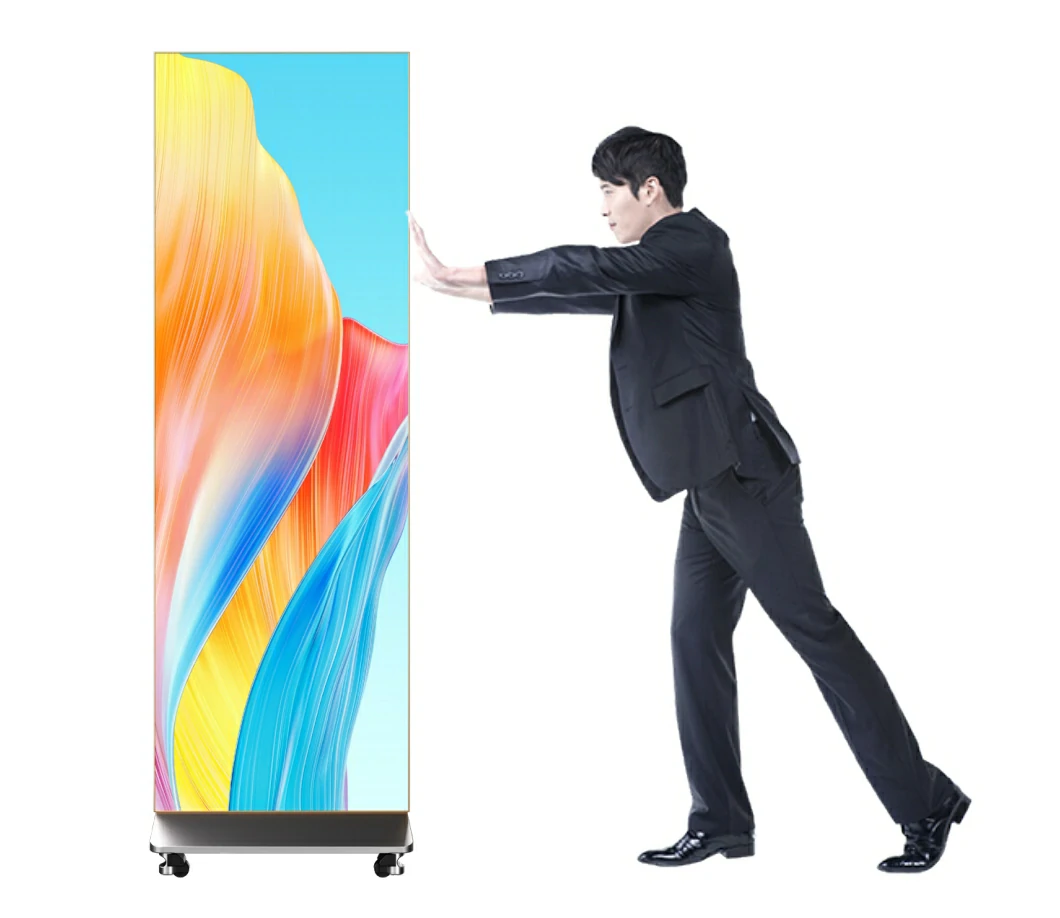

  • led poster screen 7

    More than 10 years of industry experience supporting customized services

    If your customers have special functional requirements, we at Kesytech can also provide customized designs. Kesytech has more than 10 years of experience in the LED display industry. Contact our team now!

How to Install and Use a Foldable LED Poster Display

The following steps apply to the foldable model shown on this page. After delivery, you should follow the manual and project documents for the selected model.

  1. You should remove the unit from its shipping case and inspect the enclosure, power cable, and structural parts.
  2. You should unfold the upper display section and secure the rear fasteners according to the model instructions.
  3. You should install the supplied reinforcement component and confirm that the unit is stable on a level surface.
  4. You should connect a compliant power supply and confirm normal power indication and display operation.
  5. You should follow the control-system instructions to connect a phone or computer and test content publishing.

Standing and other structural models may use different installation procedures, so the corresponding model documentation should be followed.

LED Poster screen parameters tab.

clothing store1
billboard led poster
stage
led poster for Shopping malls

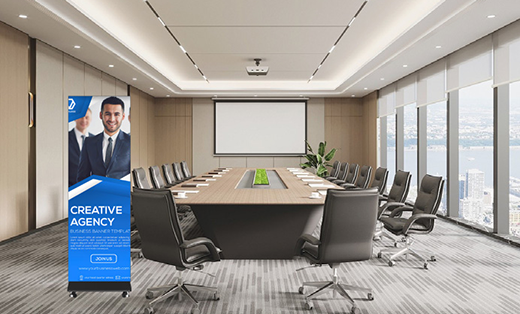

meeting room
foldable led posters for shopping malls
smd and gobled poster
restaurant
school
Name Item KX-X2.5 KX-X1.86 KX-X1.53 KX-X1.25
Display module parameters Pixel spacing 2.5mm 1.86mm 1.538mm 1.25mm
Pixel construction SMD 3-in-1 LED SMD 3-in-1 LED SMD 3-in-1 LED SMD 3-in-1 LED
Resolution ratio 128*(h)64point 172*(h)86point 204*(h)104point 256*(h)128point
Module Size (w)320*(h)160mm w)320*(h)160mm (w )320*(h)160mm (w)320*(h)160mm
Protective technology GOB GOB GOB GOB
Module weight 0.55kg 0.55kg 0.55kg 0.55kg
Whole machine composition Whole machine module composition W*H (w)2*（H）12pcs (w)2*（H）12pcs (w)2*（H）12pcs (w)2*（H）12pcs
Overall resolution W * H (w)256*（H）768px (w)344*（H）1032px (w)416*（H）1248px (w)512*（H）1536px
Di splay Size 640*1920mm 640*1920mm 640*1920mm 640*1920mm
Dimension 646*2050mm 6 46*2050mm 646*2050mm 646*2050mm
Gross weight of the machine 43kg 43kg 43kg 43kg
Optical parameters Flat ness tolerance 0.5mm 0.5mm 0.5mm 0.5mm
White balanced brightness 650CD 650CD 650CD 650CD
Gray scale 14-16BT adjustable 14-16BT adjustable 14-16BT adjustable 14-16BT adjustable
Color temperature 3200-9000 adjustable 3200-9000 adjustable 3200-9000 adjustabl e3200-9000 adjustable
Best visual distance 3-20M 3-20M 3-20M 3-20M
Perspective (horizontal) 160° 160° 160° 160°
Perspective (vertical) 160° 160° 160° 160°
Tolerance of center to center
distance of luminous point		 ≤3% ≤3% ≤3% ≤3%
luminance uniformity ≥95 ≥95 ≥95 ≥95
Chromaticity uniformity Within ±0.003Cx,Cy Within ±0.003Cx,Cy Within ±0.003Cx,Cy Within ±0.003Cx,Cy
contrast ratio 8000:1 8000:1 8000:1 8000:1
Power on requirements Power supply requirements 110-240V 110-240V 110-240V 110-240V
Peak  power consumption 430W 450W 550W 650W
Average power consumption 145W 150W 185W 220W
Communication parameters Synchronous/Asynchronous support
Communication method drive/Ethernet port/4G remote
Inte rface JS485*1   WIFI*1  U disk*1   HDMI*2
Speaker Is there a built-in speaker 50*12mｍ*2PCS
Audio 3.5 Audio Interface/Supports External Amplifier
Performance processing Drive mode Constant current drive
Frame Frequency 60HZ
Refresh rate ≥3840HZ
Using parameters Typical lifespan values 50000H
Working temperature range ﹣40—50℃
Operating humidity range 10-80% No condensation
Storage Temperature Range ﹣50—50RH2
Stor age humidity range v

Customers are all asking- FAQ

Customers often inquire about common questions, and you may find answers to your product-related queries here as well. If you still have any uncertainties, please feel free to contact our customer service directly.

A: LED poster displays may use floor-standing, foldable-support, wall-mounted, or suspended installation, depending on the product structure and project design.

A: Common configurations include USB, HDMI, Wi-Fi, and remote content management. Available interfaces and control methods depend on the model and controller.

A: The series shown on this page includes P2.5, P1.86, P1.53, and P1.25 options. Actual availability depends on the model specification.

A: Models with compatible splicing structures and control configurations can be combined, with joining and synchronization confirmed for the selected model.

A: Foldable models emphasize mobility, storage, and transport, while standing models use a fixed structure for relatively stable display locations.

A: Portable models commonly use casters, foldable structures, or narrow enclosures. Weight, folding method, and transport configuration vary by model.

A: Some models can be configured with infrared touch or other interactive components. Touch is not standard on every model.

A: Routine maintenance includes cleaning the enclosure and display surface, maintaining ventilation and dry storage, checking power and connections, and following model instructions for extended shutdowns.

A: Common applications include retail stores, exhibitions, events, reception areas, schools, corporate lobbies, and spaces requiring dynamic advertising or announcements.

A: Quotations commonly depend on pixel pitch, display structure, panel construction, control method, power configuration, quantity, and customization requirements.



    Aging LED poster screens in truck room waiting to be shipped

    P2.5 Indoor LED Poster display

    10 smart LED poster screens are aging and waiting to be shipped to US customers

    P1.86 Foldable LED Poster Screen

    8 foldable LED poster screens will be shipped to Saudi Arabia

    Make Mobile Advertising More Flexible and Content Updates More Efficient

    You can select an LED poster display according to mobility, viewing distance, and content management, balancing standalone display, portable use, and splicing on compatible models.

    Get A Free Quote

    Kesytech LED Poster Display Catalog

    This catalog shows only part of the LED poster display range available from Kesytech. If you cannot find a suitable product for your display environment, pixel pitch, structure, or control method, you can contact customer service or sales for assistance.
